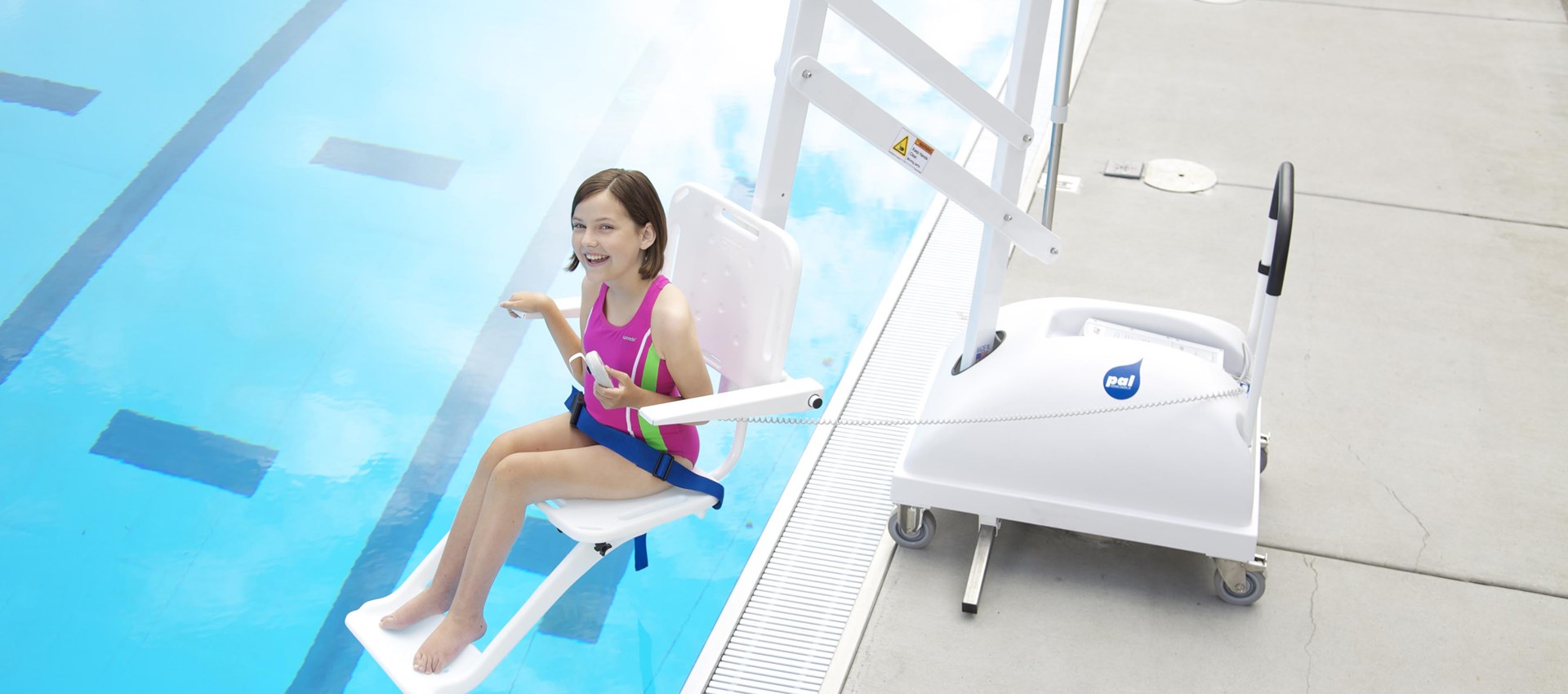

PAL Portable Pool Lift

The PAL is a portable pool lift which requires no fixing to the pool deck and can be moved away for storage when not in use. It has been designed so that individuals with disabilities and mobility impairments can have universal access to any type of swimming pool or spa. The freestanding PAL has become the industry standard pool lift worldwide.


 SR Smith PAL Pool Lift

SR Smith PAL Pool Lift

Key Features

The PAL Lift series meets the Americans with Disabilities Act Access Guidelines (ADAAG 2010). In addition to the standard configuration, the PAL lift is also available in Hi/Lo and Spa versions. 240° rotation ensures a safe transfer area and the lift can be operated by the user or an attendant using the supplied 4 way hand control.

Specifications: 136 kg (300 pound) lifting capacity. Powered by a 24-volt rechargeable battery. Powder-coated stainless steel and aluminum.

Part Number(s): 200-0000EU, 250-0000EU, 275-0000EU

Shipping Dimensions: 542 kg (1,195 lbs.) 40"L x 48"W x 60"H



Portable and Adaptable

The PAL hoist is designed to provide flexibility for aquatic facilities seeking to provide access to more than one pool or spa, or to accommodate a user’s desire to enter a single pool in multiple locations. The PAL is available in a Hi-Lo version for facilities with both in-ground pools and above-ground spas, as well as a Spa version for above-ground pools and spas.



Pool Lift Maintenance

Regular maintenance will prolong the life of your lift. Keep all electronic components clean and dry. Keep the Console/Battery Cover installed at all times to prevent moisture from collecting on the Control Box and battery. Excessive moisture collection can affect battery and lift performance and could lead to battery failure and/or the lift failing to operate. If the lift is used outdoors, optional covers are available and recommended.

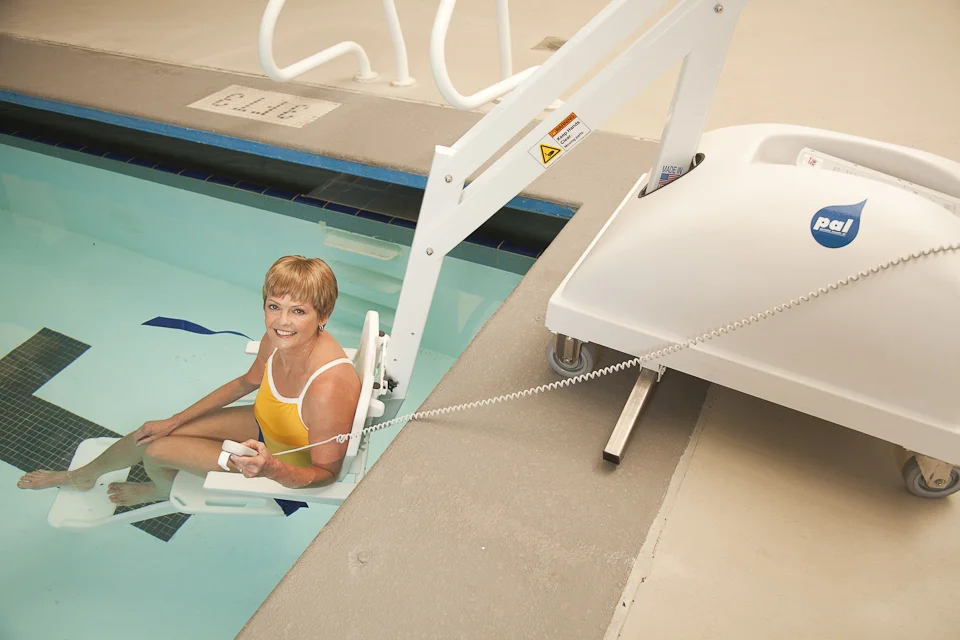

Using the PAL Pool Lift

The PAL pool lift must only be used on a rigid level pool deck surface with a slope of no more than 2º. The front wheels are rigid and the back wheels swivel to facilitate movement. Both back wheels can and must be locked to prevent movement during transfer to and from the pool. The stabilising arms must be fully extended before each use and be used at all times when a user is seated.



Setting up the PAL Pool Lift

This video shows you how to unpack, install and operate the PAL pool hoist safely. Newer versions of the PAL use the Lift Operator control box and battery pack
